How Daswell Gets the Job Done
The mobile asphalt mixing plant is available in two types: drum mix and forced mix. The drum type combines drying and mixing functions in a single drum and produces asphalt continuously, making it ideal for small to medium-sized road works and low-grade highways. The forced mix type, on the other hand, separates drying from mixing. It has a twin-shaft mixer for precise batching, resulting in a higher asphalt quality. This makes it suitable for expressways, airport roads, and projects with strict standards. Unlike stationary plants, mobile plants are easily transportable.
10 – 80 t/h
41. 5 – 200 kw
57.5 – 276 kW
2 – 20 t
Why Choose Daswell
The Daswell mobile asphalt mixing plant offers flexibility, mobility, and efficiency with two models to suit different project needs.
1. Two model options: Choose between the drum mix type (cost-effective and easy to operate) and the forced mix type (higher asphalt quality with its weighing system and twin-shaft mixer.
2. Simple structure: Drum type features an integrated design that occupies less floor space while forced mix type adopts a modular design for easier setup.
3. Mobility: Both types are mounted on a chassis that can be pulled by a vehicle for convenient transportation.
4. Optimized drying drum: Drying drum has insulation for faster heating and minimal heat loss.
5. Intelligent control system: Utilizes PLC control for easier and user-friendly operation.
6. Customizable configurations: Forced mix type can be equipped with a separate feeder for fillers and additives.
With its precision and portability, the Daswell mobile asphalt mixing plant is a reliable solution for various road projects. If you’re interested in this product, feel free to contact us. Tell us more about your project, and we will be happy to assist you.

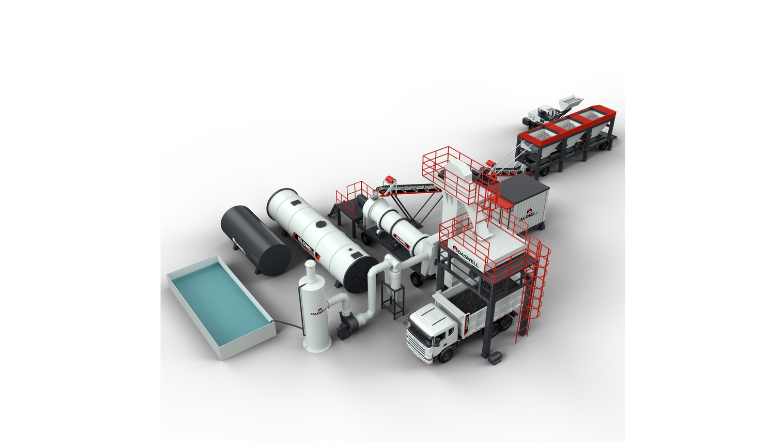

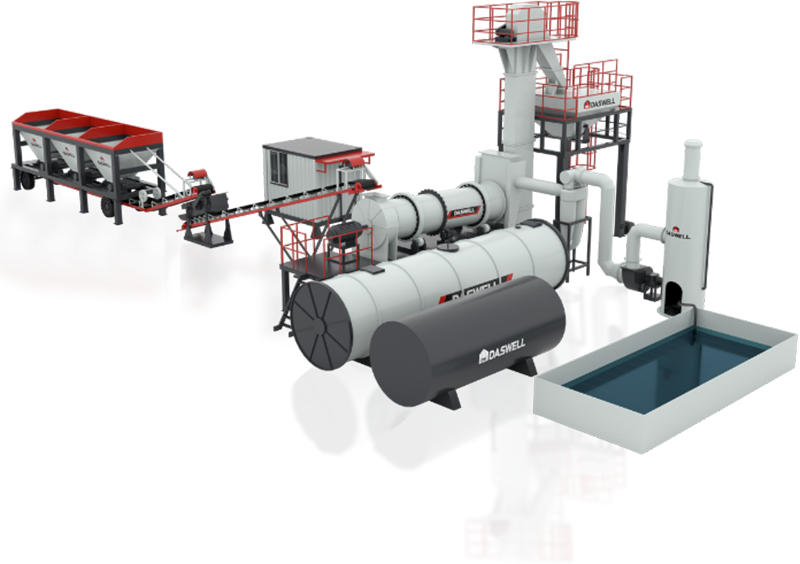

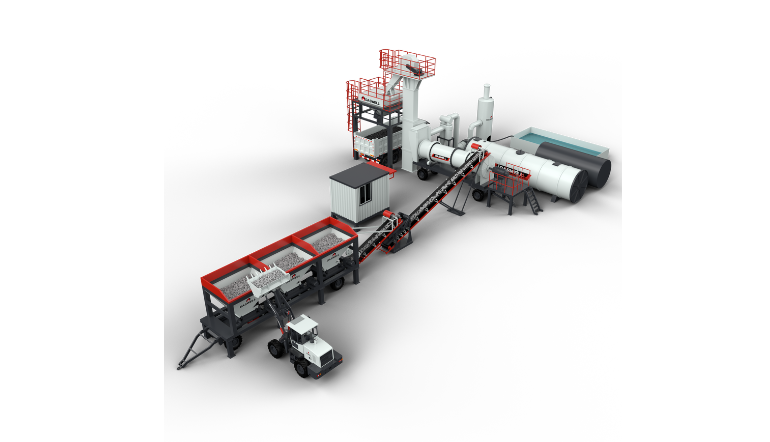

Mobile Asphalt Mixing Plant Gallery
Mobile Asphalt Mixing Plant Technical Data
| Model | MASP-10 | MASP-15 | MASP-20 | MASP-30 | MASP-40 | MASP-60 | MASP-80 | |
| Capacity | 10 t/h | 15 t/h | 20 t/h | 30 t/h | 40 t/h | 60 t/h | 80 t/h | |
| Overall Power | Fuel Oil | 41.5kW | 54kW | 63.5kW | 104.5kW | 125kW | 157.5kW | 200kW |
| Fuel Coal | 57.5kW | 75kW | 86.5kW | 127.5kW | 169kW | 205kW | 276kW | |
| Aggregate Feeder | 2.3m3 ×3 | 2.3m3 ×3 | 2.3m3 ×3 | 5m3 ×3 | 5m3 ×3 | 5m3 ×3 | 5m3 ×4 | |
| Finished Asphalt Storage Bin | 2 t | 5 t | 5 t | 9 t | 9 t | 9 t | 20 t | |
| Asphalt Temperature | 120-180 °C (adjustable) | |||||||
| Fuel Consumption | Diesel: 5-7.5 kg/t; Coal: 13-15 kg/t | |||||||
| Optional Components | Water dust collector, Baghouse dust collector, Control room, Bitumen heating tank | |||||||
