Concrete pump for sale philippines is our hot sale product. It includes many different types, such as, concrete mixer with pump, stationary concrete pump, concrete line pump, truck mounted concrete pump, concrete boom pump for sale, small portable concrete pump and so on. Different types of pumps have different functions. If you plan to purchase a philips concrete pumping machine, you need to pick up a suitable one according to the need of your project and its production capacity. Then I will introduce for your our main pumps.
Pumpcrete for sale in Philippines
Pumpcrete for sale in philippines is also called truck mounted concrete pump or concrete boom pump. Equipped with concrete placing boom, the pumpcrete for sale can reach the higher floor. Our pumpcrete truck for sale has different chassis and the length of concrete placing boom for your reference. The minimum length of concrete placing boom is 21m and the maximum length can reach 63m, which can totally meet the requirements of different customers. You can choose suitable concrete pump philippines according to the height of your project.
TMBP22 Pumpcrete Truck
Parameter: TMBP22
Drive way: 4×2
Arm leg:
vertical height (m): 21.9
Horizontal length (m): 18.1
Fold type: M (three arms)
Distribution valve: S valve
Request A Quote
TMBP30 Boom Pump Truck
Parameter: TMBP30
Drive way: 4×2
Arm leg:
vertical height (m): 29.7
Horizontal length (m): 25.9
Fold type: M (four arms)
Distribution valve: S valve
| Parameter | TMBP22 | TMBP25 | TMBP30 | TMBP33 | TMBP38 | ||
| Whole truck | Drive way | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | |
| Engine | Yuchai | Yuchai | Yuchai | Yuchai | Man | ||
| Output power/speed (kw/rpm) | 147/2000 | 147/2000 | 177/2000 | 177/2300 | 228/2300 | ||
| Emission standard | Euro V | Euro V | Euro V | Euro V | Euro V | ||
| Tire size | 9.00R20 16PR | 9.00R20 16PR | 11.00R20 16PR | 11.00R20 | 12.00R20 | ||
| Arm & leg | Vertical height (m) | 21.9 | 25.5 | 29.7 | 33 | 38 | |
| Horizontal length (m) | 18.1 | 21.7 | 25.9 | 29.5 | 33.2 | ||
| Vertical depth (m) |
|
|
15.5 | 19 | 22 | ||
| Fold type | M (three arms) | M (four arms) | M (four arms) | 5RZ | 5RZ | ||
| Rotary angle (°) | ±360 | ±360 | ±360 | ±360 | ±360 | ||
| Pumping system | Theoretical pumping pressure (MPa) | Low pressure | 8.5 | 8.5 | 8.5 | 8 | 8 |
| High pressure | 10.5 | 10.5 | 10.5 | 12 | 12 | ||
| Distribution valve | S valve | S valve | S valve | S valve | S valve | ||
| Delivery cylinder inner diameter/stroke (mm) | 200/1200 | 200/1200 | 230/1450 | 230/1600 | 230/1600 | ||
| Hopper capacity (m3) | 0.65 | 0.65 | 0.65 | 0.5 | 0.5 | ||
| Feeding height (mm) | 1450 | 1450 | 1450 | 1450 | 1450 | ||
| Pipe diameter (mm) | 125 | 125 | 125 | 125 | 125 | ||
| Maximum aggregate size (mm) | 40 | 40 | 40 | 40 | 40 | ||
Concrete mixer with pump
Concrete mixer with pump perfectly combines the function of concrete mixer and trailer pump. It can mix and convey the concrete at the same time in one machine. Our concrete mixer with pump includes two types, diesel engine and electric motor. In general, if you want to purchase a concrete pump philippines for sale for your own project like building construction or road construction, our concrete mixer with pump is a good choice for you.
| Parameter | Unit | DMP50 | |
|
Power |
kw | Weichai diesel engine; 85kw | |
| Whole machine | Length | mm | 4680 |
| Width | mm | 2100 | |
| Height | mm | 2300 | |
| Weight | kg | 4200 | |
| Mixer | Mixer model | / | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | |
| Maximum aggregate size | mm | 40 | |
| Working cycle time | s | 72 | |
| Feeding height | mm | 1400 | |
| Hopper capacity | m3 | 0.65 | |
| Parameter | Unit | DMP40 | |
|
Power |
kw | Weichai diesel engine; 66kw | |
| Whole machine | Length | mm | 4500 |
| Width | mm | 1850 | |
| Height | mm | 1950 | |
| Weight | kg | 4000 | |
| Mixer | Mixer model | / | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | |
| Maximum aggregate size | mm | 40 | |
| Working cycle time | s | 72 | |
| Feeding height | mm | 1400 | |
| Hopper capacity | m3 | 0.65 | |
| Parameter | Unit | EMP40 | DMP40 | DMP50 | |
|
Power |
kw | 45 | Weichai diesel engine; 66kw | Weichai diesel engine; 85kw | |
| Whole machine | Length | mm | 4250 | 4500 | 4680 |
| Width | mm | 2100 | 1850 | 2100 | |
| Height | mm | 2700 | 1950 | 2300 | |
| Weight | kg | 4000 | 4000 | 4200 | |
| Mixer | Mixer model | / | JZM450 | JZM450 | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | 15-25 | 15-25 | |
| Maximum aggregate size | mm | 40 | 40 | 40 | |
| Working cycle time | s | 72 | 72 | 72 | |
| Feeding height | mm | 1400 | 1400 | 1400 | |
| Hopper capacity | m3 | 0.65 | 0.65 | 0.65 | |
| Pumping system | Theoretical pumping capacity | m3/h | 40 | 30 | 45 |
| Theoretical pumping pressure | MPa | 8 | 8 | 10 | |
| Delivery cylinder | / | 200*800 | 200*800 | 230*800 | |
| Hydraulic system | / | Open | Open | Open | |
| Distribution valve | / | S valve | S valve | S valve | |
| System pressure | MPa | 28 | 28 | 28 | |
| Delivery pipe diameter | mm | 125 | 125 | 125 | |

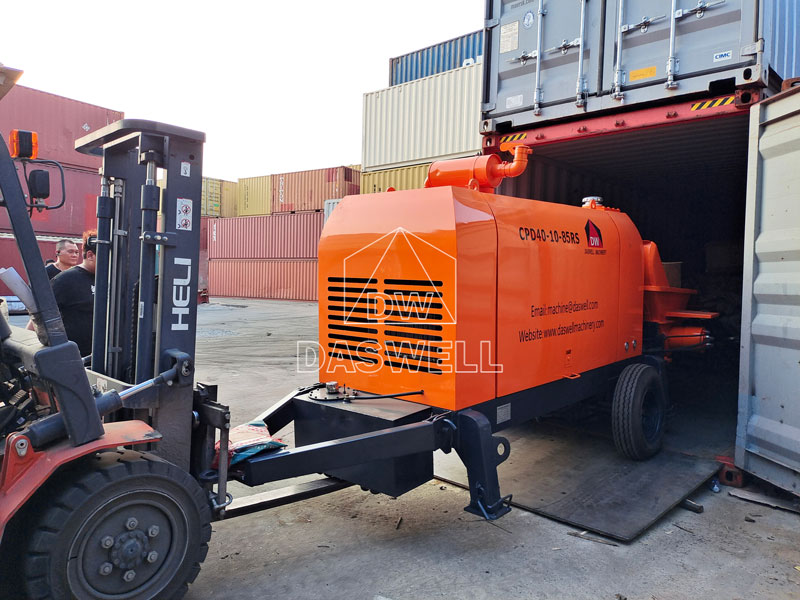

Stationary concrete pump philippines
Stationary concrete pumping philippines is also named trailer concrete pump because you need to move it by a trailer. Like the concrete mixer and pump, our stationary concrete pump for sale philippines also has two types driven engine, diesel engine and electric motor.
Its delivery volume of our stationary concrete pump can range from 30m3/h to 90m3/h. If the size of your project is not very big, you can consider our small or mini concrete pump. On the contrary, you can choose the large size pump.
| Item | CPD40-10-66 |
| Max. theoretical concrete output capacity (m3/h) | 35 |
| Total power (kw) | 66 Weichai engine |
| Max. aggregate size (mm) | 40 |
| Outlet pressure (MPa) | 10 |
| Concrete delivery cylinder diameter*stroke (mm) | Φ230*800 |
| Hopper capacity (m3) | 0.5 |
| Delivery pipe diameter (mm) | Φ125 |
| Concrete slump | 160~220 |
| Overall dimension (mm) | 4500×1850×1750 |
| Total weight (kg) | 3400 |
| Item | CPD40-10-66 | CPD60-13-130 | CPD80-16-176 | CPD90-18-176 | CPD90-20-199 |
| Max. theoretical concrete output capacity (m3/h) | 35 | 81/59 | 88/57 | 88/57 | 88/50 |
| Total power (kw) | 66 Weichai engine | 130 Weichai engine | 176 Cummins engine | 176 Cummins engine | 199 Weichai engine |
| Max. aggregate size (mm) | 40 | 40 | 40 | 40 | 40 |
| Outlet pressure (MPa) | 10 | 9/13 | 11/16 | 11/18 | 14/22 |
| Concrete delivery cylinder diameter*stroke (mm) | Φ230*800 | Φ200*1800 | Φ200*1800 | Φ200*1600 | Φ200*1600 |
| Hopper capacity (m3) | 0.5 | 0.8 | 0.8 | 0.8 | 0.8 |
| Delivery pipe diameter (mm) | Φ125 | Φ125 | Φ125 | Φ125 | Φ125 |
| Concrete slump | 160~220 | 160~220 | 160~220 | 160~220 | 160~220 |
| Overall dimension (mm) | 4500×1850×1750 | 6300×2100×2350 | 6300×2100×2550 | 6300×2100×2350 | 6400×2120×2450 |
| Total weight (kg) | 3400 | 6300 | 6900 | 6900 | 6990 |
Concrete line pump truck
Actually, the concrete line pump truck is that put the trailer pump on a car chassis. So the concrete line pump truck is easier to move to anywhere because it has its own chassis.
| Item | TMLP60-13-132 |
| Max. theoretical delivery volume(m3/h) | 60 |
| Max. theoretical delivery pressure(Mpa) | 13 |
| Power(kw) | 132 |
| Engine brand | DEUTZ |
| Main oil pump | Double 112 |
| Main oil cylinder (mm) | Φ125*80*1650 |
| Delivery cylinder (mm) | Φ200*1650 |
| Oscillating oil cylinder (mm) | Φ80 |
| Delivery distance(Horizontal/Vertical)(m) | 500/130 |
| Chassis | SINO-TRUCK CDW |
How to determine the right type of concrete and the model?
Different types of concrete pumps are suitable for different kinds of projects. If you want to find a suitable machine, then you need to first determine the following aspects.
- First, how high and how far your concrete needs to be pumped. Different models of concrete pumps have different levels of power. So you need to know the approximate distance you need to pump. If you don't know the exact distance, you need to know roughly how many stories you need to pump to.
- Secondly, you should know how many cubic meters of concrete you need to pump in an hour. This is related to the size of your project.
- Then, you also need to know what the maximum aggregate size of your concrete is, and the purpose of this is to avoid the phenomenon of pipe clogging.
- Finally, you also need to choose the type of diesel or electric concrete pump according to the situation in your location.
You also can contact us and we can offer you more professional suggestions if you don't know about the concrete pump for sale philippines.
Daswell Machinery in Philippines
Our Daswell Machinery is a brand of high quality machinery solution from China. We are a company specializing in the search, design and production of construction machinery, and mineral processing machinery for more than 30 years. And our concrete machinery are on the top quality rank in China. With more and more customers in Philippines, we have set up a branch office and warehouse there in order to serve our customers better.
You can visit our office there or we can show you our concrete pump for sale in the philippines. By doing this, you can learn the quality of our machine. Moreover, you can listen to their reviews for our concrete pump philippines or our service. Moreover, we send our salesman working there, so when you meet some problems, they can arrive your site and help you solve your problems quickly.
After-sale service we provide
After-sale service is an important part for judging whether a concrete pump supplier is trustworthy. Usually, our company includes pre-sale service, on-sale service and after-sale service. Choose our company, you can enjoy the following service:
Service one
Visit our office and factory. And customize the concrete pump in philippines for you if you have any extra requirement;
Service Two
Plan your construction site and help you choose a suitable transportation route. Then train your operators until they can use the concrete pump for sale philippines correctly;
Service Three
Installation and debugging service; teach you some useful maintenance and repairment methods, regular inspection and maintenance, etc.
