Pumpcrete For Sale Philippines

Table of Contents

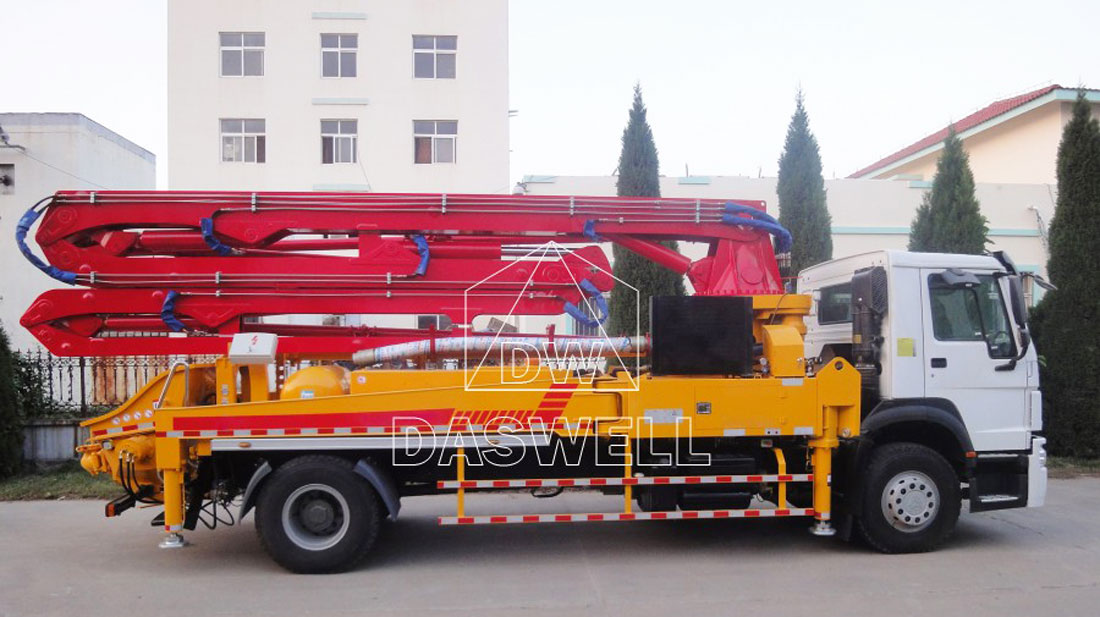

30m pumpcrete machine for sale
TMBP30 pumpcrete truck in customer's site

Parameter

TMBP30

Whole truck

Drive way

4×2

Engine

Yuchai

Output power/speed (kw/rpm)

177/2000

Emission standard

Euro V

Tire size

11.00R20 16PR

Arm & leg

Vertical height (m)

29.7

Horizontal length (m)

25.9

Vertical depth (m)

15.5

Fold type

M (four arms)

Rotary angle (°)

±360

Pumping system

Theoretical pumping pressure (MPa)

Low pressure

8.5

High pressure

10.5

Distribution valve

S valve

Delivery cylinder inner diameter/stroke (mm)

230/1450

Hopper capacity (m3)

0.65

Feeding height (mm)

1450

Pipe diameter (mm)

125

Maximum aggregate size (mm)

40

Brief Introduction

Pumpcrete for sale philippines can transport the concrete continuously along the pipe under the pressure. The pumpcrete for sale philippines is to install the pump body on the chassis and equip with the stretchable concrete placing boom. Pumpcrete is popular in Philippines. The reason is that it has its own chassis, which is convenient to transfer among different construction sites.

Moreover, it is equipped with placing boom, reducing the time of connecting the pipelines. So the pumpcrete philippines plays an important role on the building construction, bridge construction, factory project, high speed rail project, etc. Learn the pumpcrete philippines price information by clicking here.

Features of pumpcrete for sale philippines

Small and flexible.

Our pumpcrete truck for sale adopts the full z-type placing boom, which has a small opening height and a short opening and rewinding time. It is very suitable for construction in factory and workshops with limited height and space, and can be used for large-scale construction at the same time.

Good quality.

The pumping system of truck mounted pumpcretegenerally adopts flexible installation, which can reduce the impact on the bottom frame and concrete piston wear and tear, and at the same time, it can eliminate the fault efficiently through the fault self-diagnosis system.

Long distance transportation and don’t be affected by the travel conditions.

The advantages of pumpcrete machine for sale philippines are all the more apparent in bad weather when the construction site is overwhelmed by factors such as muddy roads and workers have to trek. Combination of the concrete pump and the extension pipe allows the pumpcrete equipment to complete the long distance pumping, so our pumpcrete for sale can work normally even in bad conditions.

High automatic degree and convenient to operation.

This pumpcrete for sale philippines generally adopts the intelligent boom system, which can be easily controlled by one key, and realize the boom vertical or horizontal automatic pouring.

Successful cases for your reference

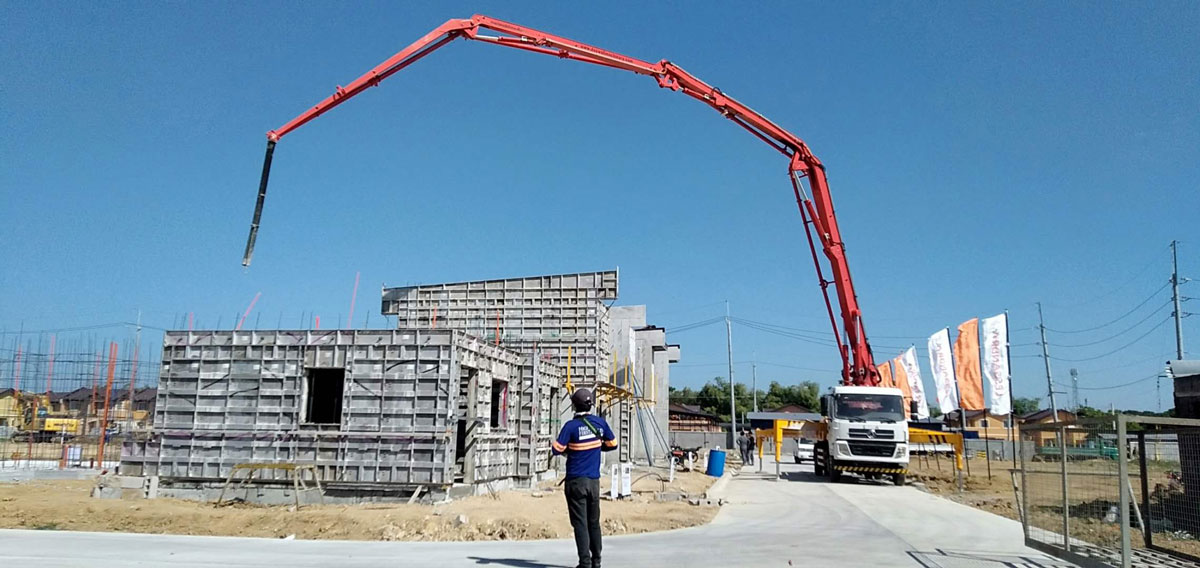

30M Pumpcrete Truck Works In Philippines

30M pumpcrete in Lumina Pagadian
30m pumpcrete philippines
30M-pumpcrete-in-Camella-Bulacan
30m pump

Transport Five Sets of Pumpcrete Machines To Manila, Philippines

five sets of pumps
five sets of pumpcrete
five sets of pump trucks
five sets of pump machines

Parameter

TMBP22

TMBP25

TMBP30

TMBP33

TMBP38

Whole truck

Drive way

4×2

4×2

4×2

4×2

4×2

Engine

Yuchai

Yuchai

Yuchai

Yuchai

Man

Output power/speed (kw/rpm)

147/2000

147/2000

177/2000

177/2300

228/2300

Emission standard

Euro V

Euro V

Euro V

Euro V

Euro V

Tire size

9.00R20 16PR

9.00R20 16PR

11.00R20 16PR

11.00R20

12.00R20

Arm & leg

Vertical height (m)

21.9

25.5

29.7

33

38

Horizontal length (m)

18.1

21.7

25.9

29.5

33.2

Vertical depth (m)





15.5

19

22

Fold type

M (three arms)

M (four arms)

M (four arms)

5RZ

5RZ

Rotary angle (°)

±360

±360

±360

±360

±360

Pumping system

Theoretical pumping pressure (MPa)

Low pressure

8.5

8.5

8.5

8

8

High pressure

10.5

10.5

10.5

12

12

Distribution valve

S valve

S valve

S valve

S valve

S valve

Delivery cylinder inner diameter/stroke (mm)

200/1200

200/1200

230/1450

230/1600

230/1600

Hopper capacity (m3)

0.65

0.65

0.65

0.5

0.5

Feeding height (mm)

1450

1450

1450

1450

1450

Pipe diameter (mm)

125

125

125

125

125

Maximum aggregate size (mm)

40

40

40

40

40

Choose a right model of pumpcrete machines

Our customers come from all over the world and they use our pumpcrete truck for sale for different projects. Different projects have different requirements for the length of concrete placing boom. The lengths of our concrete placing boom includes 22m, 25m, 30m, 33m, 37m, 44m, 47m, 50m, 58m and 62m. You can pick up a suitable model of pumpcrete machine for sale depending on your real needs. What’s more, different model of pumpcrete machine for sale is equipped with different chassis model. Or if you have already had a chassis, we also can just provide you with the concrete placing boom.

Selecting a right model of pumpcrete for sale, besides the lengths of concrete placing boom and the types of chassis, you also need to consider the type of project and the pumping output per hour. These parameters are important for a pumpcrete. Moreover, you need to notice the brand of its components. Good components can greatly guarantee the quality of pumpcrete for sale philippines and reduce its failure rate.

If you still have any question for choosing a right machine, welcome to consult us at any time. We will reply you as soon as possible.

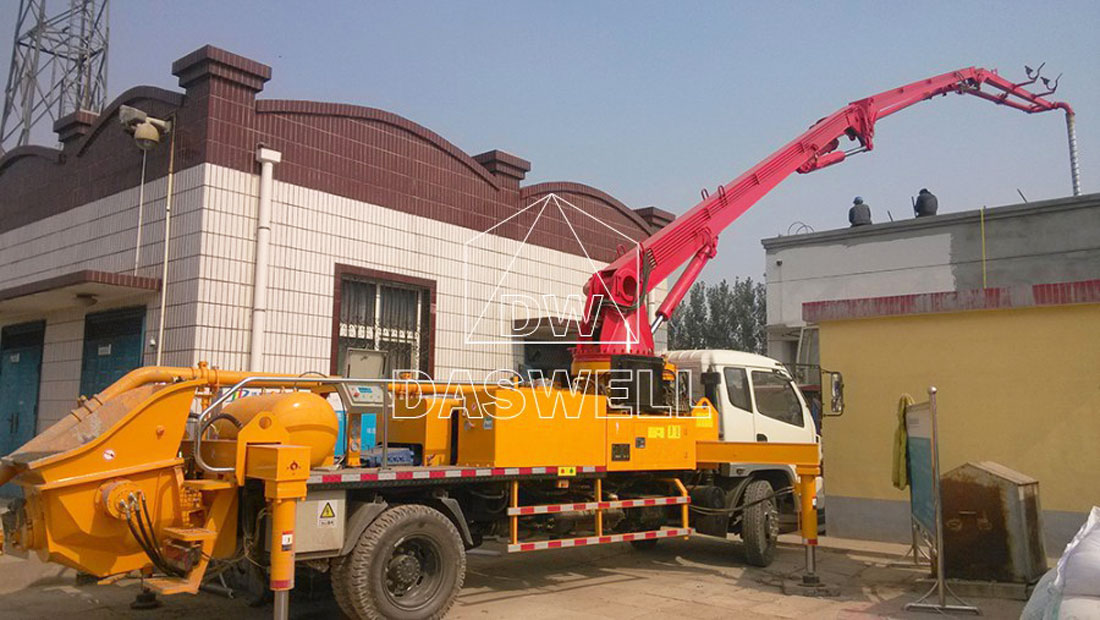

25m concrete pump for sale philippines
25m pumpcrete
25m pumpcrete truck
TMBP25 pumpcrete in Philippines

Parameter

TMBP25

Whole truck

Drive way

4×2

Engine

Yuchai

Output power/speed (kw/rpm)

147/2000

Emission standard

Euro V

Tire size

9.00R20 16PR

Arm & leg

Vertical height (m)

25.5

Horizontal length (m)

21.7

Vertical depth (m)



Fold type

M (four arms)

Rotary angle (°)

±360

Pumping system

Theoretical pumping pressure (MPa)

Low pressure

8.5

High pressure

10.5

Distribution valve

S valve

Delivery cylinder inner diameter/stroke (mm)

200/1200

Hopper capacity (m3)

0.65

Feeding height (mm)

1450

Pipe diameter (mm)

125

Maximum aggregate size (mm)

40

Notice something when use the pumpcrete for sale philippines

Before driving, you should check out the condition of the truck mounted pumpcrete. There are some suggestion for you.

  1. Make sure that the concrete placing boom has been completely closed and fixed, otherwise do not drive on the road;
  2. Check that the legs of the pumpcrete are in place and that the leg locks are tight;
  3. Check the closing and sealing of the oil tank and water tank of pumpcrete. No leakage is allowed;
  4. Carry out safety inspection on concrete pump chassis (e.g. brake system, steering system, lighting system, tire pressure, etc.);
  5. Check the surface of pumprete truck tire, if double tire, check if there is any debris between them;
  6. Switch the chassis to driving condition.
large pumpcrete for sale philippines
TMBP47 concrete pump truck
large size pump
large size of pump

Parameter

TMBP38

TMBP42

TMBP47

TMBP50

TMBP58

Whole truck

Drive way

6×4

6×4

6×4

6×4

8×4

Engine

Yuchai

Yuchai

Yuchai

Yuchai

MC11.44-50

Output power/speed (kw/rpm)

243/2100

243/2100

243/2100

243/2100

327/1900

Emission standard

Euro V

Euro V

Euro V

Euro V

Euro V

Tire size

11.00R20

11.00R20

11.00R20

11.00R20

385/65R22 5/315/80R22.5

Arm & leg

Vertical height (m)

38

40.1

47

50

57.6

Horizontal length (m)

34.1

36

42

46

52

Vertical depth (m)

22.8

23.6

29.4

36.2

38

Fold type

5RZ

5RZ

5RZ

6RZ

6RZ

Rotary angle (°)

±360

±360

±360

±360

±360

Pumping system

Theoretical pumping pressure (MPa)

Low pressure

8

8

8

8

8.5

High pressure

12

12

12

12

12

Distribution valve

S valve

S valve

S valve

S valve

S valve

Delivery cylinder inner diameter/stroke (mm)

230/1600

230/1650

260/1800

260/1600

260/2200

Hopper capacity (m3)

0.5

0.5

0.6

0.6

0.6

Feeding height (mm)

1450

1450

1450

1450

1500

Pipe diameter (mm)

125

125

125

125

125

Maximum aggregate size (mm)

40

40

40

40

40

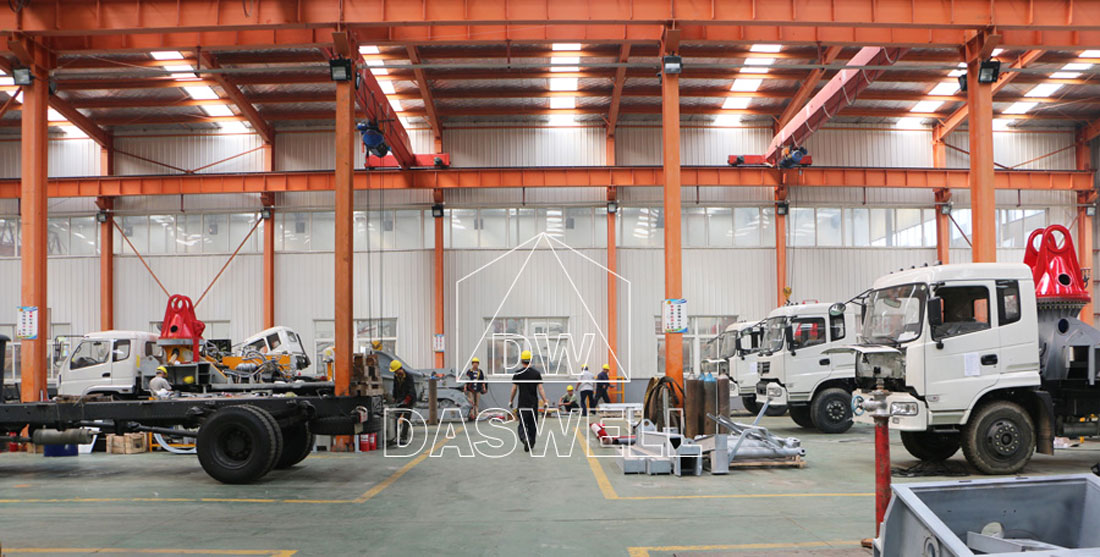

Why choose our Daswell Machinery?

daswell producing workshop
produce-pumpcrete

If you want to purchase a high quality pumpcrete for sale philippines, our Daswell Machinery company is trustworthy. Compared with other pumpcrete suppliers philippines, the reasons why you choose our company are as follows.

Rich experience. Accumulate about 30 years production experience, ensuring the quality of you pumpcrete.

Trustworthy team. We have professional research and development team and production team. Advance technology and machine makes you get a satisfied pumpcrete truck.

Strict standard and inspection system. Before transporting our machines to our customers, we will inspect them strictly according to standard, ensuing that our customers can get our pumpcrete machine for sale philippines in a good condition.

Considerate service. Besides affordable pumpcrete price and better product, you can enjoy our thoughtful and sincere service. From choosing right model to installing it, you all don’t worry at all.

To sum up, if you want to buy a pumpcrete for sale philippines, contact us now.

FAQs

The number of booms is different for different models of pump trucks. For example, a 30m pump has a four-section boom, a 38m pump has a five-section boom.

Our Daswell boom pumps, no matter which model, all adopt the front X rear swing form of legs.

Generally speaking, a 30m pumpcrete truck can pump up to the height of a three-story building.

Generally, we match the 30m pump truck with 4*2 Dongfeng chassis. If you need, we can also match the chassis of Heavy Duty Truck. We can match different brands of chassis depending on your demand.

Based on our experience, we would recommend you the 47m pumpcrete truck philippines. It is the most cost effective.

Generally speaking, the pump truck needs to be loaded with 40-frame containers or go by ro-ro ship or bulk carrier.

Yes, we can provide only the top loading boom to the customer, the customer can buy the chassis locally and then assemble them.

So far, the largest pump truck we have produced is the 62m.

The delivery time for our pump trucks is usually about 30 days. Please rest assured that we will transport the machine to the destination port specified by the customer on time.
