Self loading concrete mixer for sale is a machine integrating the functions of automatic feeding, mixing, moving and unloading. Actually, it is a substitute for the mobile type concrete batch plant. You can load the aggregates at the material site and then drive the self loading concrete mixer machine to the construction site. At the same time, this machine can finish the mixing in the moving process. This can not only reduce the work period, but also guarantee the quality of finished concrete at the projects. Therefore, this concrete self loading mixer has become more and more popular in recent years.

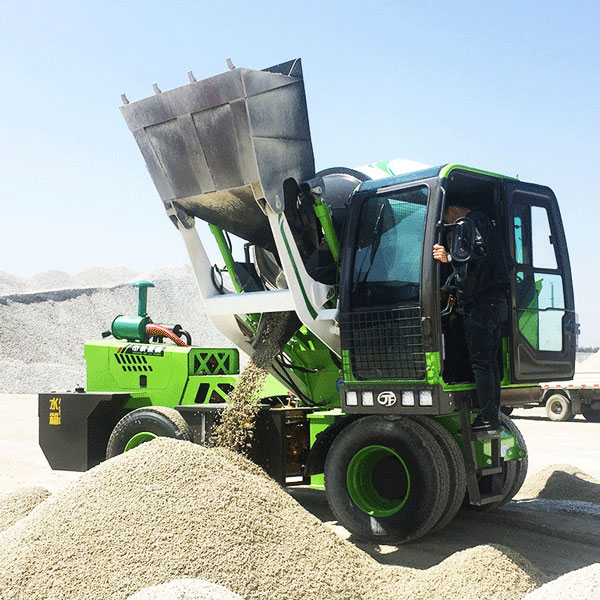

daswell self loading mixer philippines
1.5m3 self loading pan mixer
| Model | SLPM1200 | SLPM1600 | SLPM1800 | SLPM2000 | SLPM2600 | SLPM3200 |
| Capacity (m3) | 1.2 | 1.6 | 1.8 | 2 | 2.6 | 3.2 |
| Engine power(HP) | 60 | 82 | 104 | 114 | 140 | 140 |
| Tire | 1000-16 | 20.5/70-16 | 20.5/70-16 | 16/70-20 | 15/70-20 | Double tire |
| Brake system | Oil brake | Oil brake/air brake | Wheel side air brake | Wheel side air brake | Wheel side air brake | Big wheel side air brake |
| Drive mode | 4WD | 4WD | 4WD | 4WD | 4WD | 4WD |
| Gearbox | Mechanical gearbox | Full hydraulic stepless gearbox | Full hydraulic stepless gearbox | Full hydraulic stepless gearbox | Full hydraulic stepless gearbox | Full hydraulic stepless gearbox |
| Turning system | Hydraulic turning | Hydraulic turning | Hydraulic turning | Hydraulic turning | Hydraulic turning | Hydraulic turning |
| Dimension(mm) | 4400*1600*2700 | 4800*1800*2750 | 4900*1800*2800 | 5000*1800*2800 | 5200*2000*2900 | 5400*2100*2950 |
Specifications for your reference
There are many specifications of our self loading concrete mixer truck. The main difference of these models of self concrete mixer is the capacity of the concrete mixer drum and their chassis. The volume of concrete mixer drum includes 1m3, 1.5m3, 2m3, 3m3, 3.5m3, 4m3, etc. These models of self loading concrete mixers are ordinary. Now, our engineers also innovate some new models, such as 5m3 and 6.5m3. These larger self loading mixer truck can meet the demand of these large construction projects.
SLDM700
| Model | SLDM700 |
| Dimension (mm) | 3800*1680*2500 |
| Wheelbase (mm) | 2100 |
| Total weight (kg) | 3500 |
| Engine | Yunnei 490 superc harged |
| Power (kw) | 42 |
| Gearbox | 240 integrated type |
| Drive axle | Isuzu axle |
| Tires | 20.5-16 |
| Bucket capacity (m3) | 0.15 |
| Mixing capacity (m3) | ≥0.6 |
| Reduction ratio | 1:10 |
| Rotating speed = | ≥15 circles /minute |
| Reducer | Made in China |
SLDM1000
| Model | SLDM1000 |
| Dimension (mm) | 4750*2200*2850 |
| Wheelbase (mm) | 2180 |
| Total weight (kg) | 4500 |
| Engine | Yunnei 490 superc harged |
| Power (kw) | 55 |
| Gearbox | 265 integrated type |
| Drive axle | 1.8T wheel side deceleration axle |
| Tires | 20.5-16 |
| Bucket capacity (m3) | 0.35 |
| Mixing capacity (m3) | ≥0.9 |
| Reduction ratio | 1:24 |
| Rotating speed = | ≥15 circles /minute |
| Reducer | Made in China |
Picking up a right model of self loading concrete truck mixer is vital. If your project is large but you purchase a small size of self mixing concrete truck, your purchased machine can’t meet the demand of your projects. On the contrary, will cause the machine idle and waste. So before purchasing a self loading mixer for sale, you can listen to the advice of experts and get a perfect machine.
Advantages of self loading concrete mixer
- Save your purchase cost. This self loading concrete mixer for sale can replace the traditional mixer machine, loader, concrete mixer truck and pumping machine, greatly saving the original cost.
- The mixer tank can rotate 270 degrees. Our self loading mixercan achieve the 270 degree rotation. So you can unload the finished concrete anywhere. This will reduce the restriction on the site.
- Produce high quality concrete. Our self loading cement mixeris equipped with intelligent weighing equipment. This can greatly measure the materials and water according to the ratio.
- Reduce the labor intensity and cost. The operation of our self loading concrete mixer philippinesis simple. So it just needs one or two workers to operate the whole machine. Less labor intensity will reduce the number of labor and labor cost.
- Strong adaptability. Our self loading mixer concreteis four-wheel drive, which can adapt to different terrain. Even in mountains, it also can move easily.
Pay attention to the self loading concrete mixer price
As we all know, there are many factors affecting the self loading mixer price. There is a wrong idea for some buyers that select the self loading concrete mixer for sale just depending on its price. When you get a self loading mixer machine at a very low price, there may be two reasons. The self mixer you get is a second-hand equipment, so its price is lower than a new product. The other condition is that the quality of self-loading concrete mixer is very low, so its price is low. To sum up, you need to look for a good quality self loading concrete mixer truck at an affordable and reasonable price.
SLDM2000
| Model | SLDM2000 |
| Dimension (mm) | 5300*2350*2950 |
| Wheelbase (mm) | 2300 |
| Total weight (kg) | 7500 |
| Engine | Yunnei 4102 superc harged |
| Power (kw) | 78 |
| Gearbox | 280 integrated type |
| Drive axle | 2.0T wheel side deceleration axle |
| Tires | 16/70-R22.5 |
| Bucket capacity (m3) | 0.5 |
| Mixing capacity (m3) | ≥1.8 |
| Reduction ratio | 1:24 |
| Rotating speed = | ≥15 circles /minute |
| Reducer | Made in China |
SLDM3000
| Model | SLDM3000 |
| Dimension (mm) | 6300*2400*3050 |
| Wheelbase (mm) | 3200 |
| Total weight (kg) | 9000 |
| Engine | Yunnei 4105 superc harged |
| Power (kw) | 85/90 |
| Gearbox | 280 separated type |
| Drive axle | 2.5T wheel side deceleration axle |
| Tires | 16/70-R22.5 Double tire |
| Bucket capacity (m3) | 0.65 |
| Mixing capacity (m3) | ≥2.8 |
| Reduction ratio | 1:28 |
| Rotating speed = | ≥15 circles /minute |
| Reducer | Made in China |
Before considering the self loading mixer price, you should inspect the machine quality. The quality of self loading mixer truck is an important factor affecting the self loading concrete mixer price. Besides the quality, the after-sale service is crucial. Reputable self loading concrete mixer manufacturer will provide you with good machine, suitable price and considerate service.
SLDM4000
| Model | SLDM4000 |
| Dimension (mm) | 6500*2600*3450 |
| Wheelbase (mm) | 3200 |
| Total weight (kg) | 11000 |
| Engine | Yunnei 6105 superc harged |
| Power (kw) | 92 |
| Gearbox | 315 separated type |
| Drive axle | 3.0T wheel side deceleration axle |
| Tires | 16/70-R22.5 Double tire |
| Bucket capacity (m3) | 0.65 |
| Mixing capacity (m3) | ≥3.8 |
| Reduction ratio | 1:103 |
| Rotating speed = | ≥15 circles /minute |
| Reducer | HL6F-B2700 (Domestic) |
Correctly operate this mixer machine
In order to guarantee the working efficiency of self loading concrete mixer for sale, the operators should operate it correctly. In general, after you buy our Daswell self mixing concrete truck and receive it, our engineers will guide you how to use this machine. Our engineers will teach you until you can use the self loading mixer by yourself. Here are some simple tips for you.
First of all, before feeding, drain the residual water and debris in the mixer drum. In the process of transportation, do not stop the mixer drum to prevent segregation of the concrete. Then, the pressure of the hydraulic system of self loading mixer concrete should be in accordance with the specification, and should not be adjusted at will.
Moreover, the mass and volume of the hydraulic oil should also meet the requirements. At last, after using the self loading mixer machine, the operator should clean the machine, including feed mouth, mixing cylinder, discharge trough, etc. If you want to learn more tips, welcome to contact us!
SLDM5000
Request a quotation now
As an material, concrete plays an important role on the construction industries. If you want to get a machine that can produce good concrete and can transport the concrete conveniently, self loading concrete mixer for sale is an ideal choice for you. Our Daswell Machinery is willing to provide you with good self loading concrete mixer truck and service in Philippines.
Philippines Branch Office
Philippines Team
Now, we send our salesman and engineers working there for the long period. So if you are convenient, warmly welcome to visit our office in Philippines. Our salesman will show you our self loading mixer for sale and introduce them for you in detail. Looking forward to your message!
