Mini pumpcrete for sale philippines is currently the most effective and convenient method of conveying liquid concrete from the source to the site where it is to be placed. The mini concrete pump for sale can be found in almost all types of constructions. It significantly helps to increase the speed of construction as well as minimizing the overall mini concrete pump costs.
Any serious construction business understands the importance of investing in a mini concrete pump machine. Therefore, if you are handling a small-scale, medium-scale or short-term construction project, is is wise to purchase a mini concrete pump truck.
The mini concrete pump for sale includes many different kinds of types, such as, mini pumpcrete machine, mini concrete mixer pump, mini portable pumping machine, etc. Different pumping machine has different functions. If you pick up the suitable one depending on your real need.

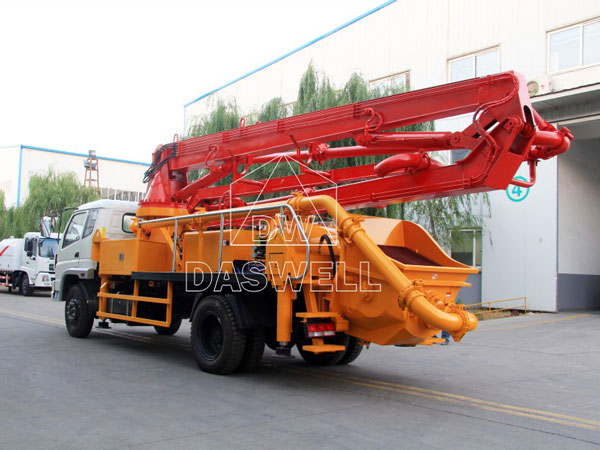

| Parameter | TMBP22 | ||
| Whole truck | Drive way | 4×2 | |
| Engine | Yuchai | ||
| Output power/speed (kw/rpm) | 147/2000 | ||
| Emission standard | Euro V | ||
| Tire size | 9.00R20 16PR | ||
| Arm & leg | Vertical height (m) | 21.9 | |
| Horizontal length (m) | 18.1 | ||
| Vertical depth (m) | |||
| Fold type | M (three arms) | ||
| Rotary angle (°) | ±360 | ||
| Pumping system | Theoretical pumping pressure (MPa) | Low pressure | 8.5 |
| High pressure | 10.5 | ||
| Distribution valve | S valve | ||
| Delivery cylinder inner diameter/stroke (mm) | 200/1200 | ||
| Hopper capacity (m3) | 0.65 | ||
| Feeding height (mm) | 1450 | ||
| Pipe diameter (mm) | 125 | ||
| Maximum aggregate size (mm) | 40 | ||
Mini pumpcrete machine
Mini pumpcrete for sale philippines means that it has shorter concrete placing boom compared with large size of pumpcrete machine for sale. Usually, the lengths of mini pumpcrete for sale include 21m, 25m, 29m and 33m. No matter which model you choose, the mini pump concrete pumping all work stably for your projects. The mini pumpcrete for sale philippines is the hot sale machine in Philippines. Up to now, we have exported many sets of these pumping machines to Philippines. Our mini concrete pumping machine plays an important role on kinds of construction projects, such as bridge construction, road construction, tall building construction and so on.
| Parameter | TMBP25 | ||
| Whole truck | Drive way | 4×2 | |
| Engine | Yuchai | ||
| Output power/speed (kw/rpm) | 147/2000 | ||
| Emission standard | Euro V | ||
| Tire size | 9.00R20 16PR | ||
| Arm & leg | Vertical height (m) | 25.5 | |
| Horizontal length (m) | 21.7 | ||
| Vertical depth (m) | |||
| Fold type | M (four arms) | ||
| Rotary angle (°) | ±360 | ||
| Pumping system | Theoretical pumping pressure (MPa) | Low pressure | 8.5 |
| High pressure | 10.5 | ||
| Distribution valve | S valve | ||
| Delivery cylinder inner diameter/stroke (mm) | 200/1200 | ||
| Hopper capacity (m3) | 0.65 | ||
| Feeding height (mm) | 1450 | ||
| Pipe diameter (mm) | 125 | ||
| Maximum aggregate size (mm) | 40 | ||

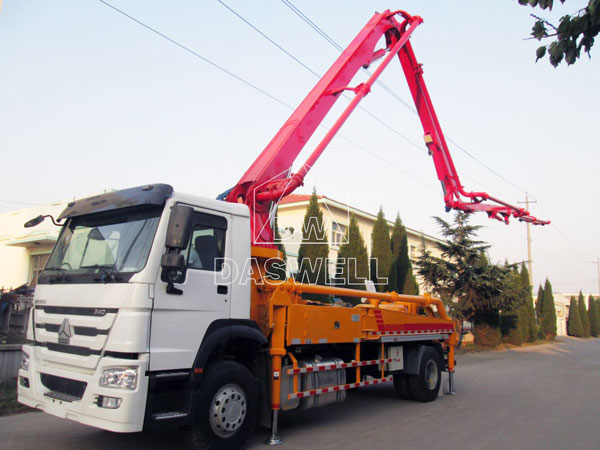

| Parameter | TMBP30 | ||
| Whole truck | Drive way | 4×2 | |
| Engine | Yuchai | ||
| Output power/speed (kw/rpm) | 177/2000 | ||
| Emission standard | Euro V | ||
| Tire size | 11.00R20 16PR | ||
| Arm & leg | Vertical height (m) | 29.7 | |
| Horizontal length (m) | 25.9 | ||
| Vertical depth (m) | 15.5 | ||
| Fold type | M (four arms) | ||
| Rotary angle (°) | ±360 | ||
| Pumping system | Theoretical pumping pressure (MPa) | Low pressure | 8.5 |
| High pressure | 10.5 | ||
| Distribution valve | S valve | ||
| Delivery cylinder inner diameter/stroke (mm) | 230/1450 | ||
| Hopper capacity (m3) | 0.65 | ||
| Feeding height (mm) | 1450 | ||
| Pipe diameter (mm) | 125 | ||
| Maximum aggregate size (mm) | 40 | ||
| Parameter | TMBP33 | ||
| Whole truck | Drive way | 4×2 | |
| Engine | Yuchai | ||
| Output power/speed (kw/rpm) | 177/2300 | ||
| Emission standard | Euro V | ||
| Tire size | 11.00R20 | ||
| Arm & leg | Vertical height (m) | 33 | |
| Horizontal length (m) | 29.5 | ||
| Vertical depth (m) | 19 | ||
| Fold type | 5RZ | ||
| Rotary angle (°) | ±360 | ||
| Pumping system | Theoretical pumping pressure (MPa) | Low pressure | 8 |
| High pressure | 12 | ||
| Distribution valve | S valve | ||
| Delivery cylinder inner diameter/stroke (mm) | 230/1600 | ||
| Hopper capacity (m3) | 0.5 | ||
| Feeding height (mm) | 1450 | ||
| Pipe diameter (mm) | 125 | ||
| Maximum aggregate size (mm) | 40 | ||

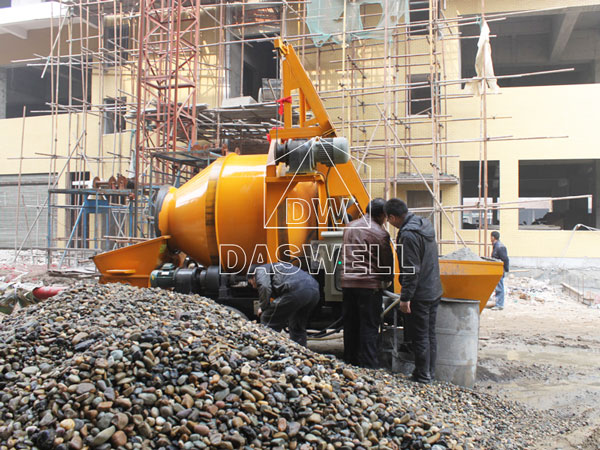

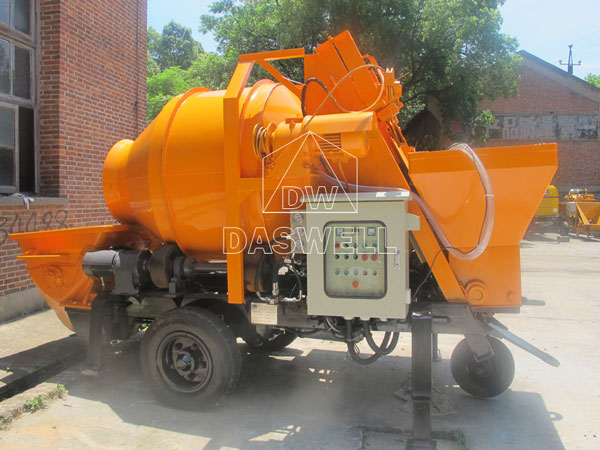

Mini concrete mixer with pump
As a experienced mini concrete pump manufacturer in Philippines, our Daswell Machinery can provide you with professional suggestion. The hot-sale models of mini concrete mixer with pump are EMP40 and DMP40. Difference between these two models of mini concrete mixer pumps is their driven engine. EMP40 is equipped with the electric motor while DHBT40 adopts diesel engine as its driven power. The design of the mini concrete mixer pump makes it easier operation. It is less complex than the larger versions and learning how to use it fast and easily. In addition, newer mini concrete mixer pumps are highly automated which means less manual operations.
| Parameter | Unit | EMP40 | |
| Power | kw | 45 | |
| Whole machine | Length | mm | 4250 |
| Width | mm | 2100 | |
| Height | mm | 2700 | |
| Weight | kg | 4000 | |
| Mixer | Mixer model | / | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | |
| Maximum aggregate size | mm | 40 | |
| Working cycle time | s | 72 | |
| Feeding height | mm | 1400 | |
| Hopper capacity | m3 | 0.65 | |
| Pumping system | Theoretical pumping capacity | m3/h | 40 |
| Theoretical pumping pressure | MPa | 8 | |
| Delivery cylinder | / | 200*800 | |
| Hydraulic system | / | Open | |
| Distribution valve | / | S valve | |
| System pressure | MPa | 28 | |
| Delivery pipe diameter | mm | 125 | |

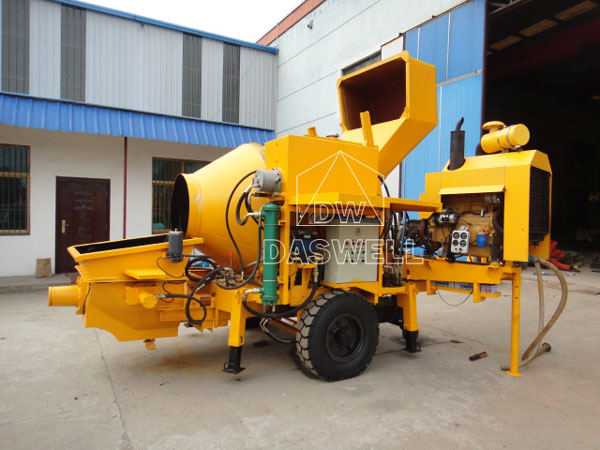

| Parameter | Unit | DMP40 | |
| Power | kw | Weichai diesel engine; 66kw | |
| Whole machine | Length | mm | 4500 |
| Width | mm | 1850 | |
| Height | mm | 1950 | |
| Weight | kg | 4000 | |
| Mixer | Mixer model | / | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | |
| Maximum aggregate size | mm | 40 | |
| Working cycle time | s | 72 | |
| Feeding height | mm | 1400 | |
| Hopper capacity | m3 | 0.65 | |
| Pumping system | Theoretical pumping capacity | m3/h | 30 |
| Theoretical pumping pressure | MPa | 8 | |
| Delivery cylinder | / | 200*800 | |
| Hydraulic system | / | Open | |
| Distribution valve | / | S valve | |
| System pressure | MPa | 28 | |
| Delivery pipe diameter | mm | 125 | |
Mini portable concrete pump
Mini portable concrete pump is also called the mini trailer concrete pumping machine. That is because it is mounted on a trailer. When you need to transport the mini mix concrete pump, you just need to transfer the trailer. Its models includes CPD30, CPE30, CPD40 and CPE40. Similar with the mini concrete mixer pump, you can pick up the suitable driven engine. The letter of D is on behalf of the diesel engine. At the same time, the E stands for the electronic motor. All vital components of mini concrete pump are made of high-quality of anti-wear materials. Of course, its body is also built with high-quality sturdy material. These mini portable concrete pumps requires minimal maintenance and will serve your business for a very long time to come.

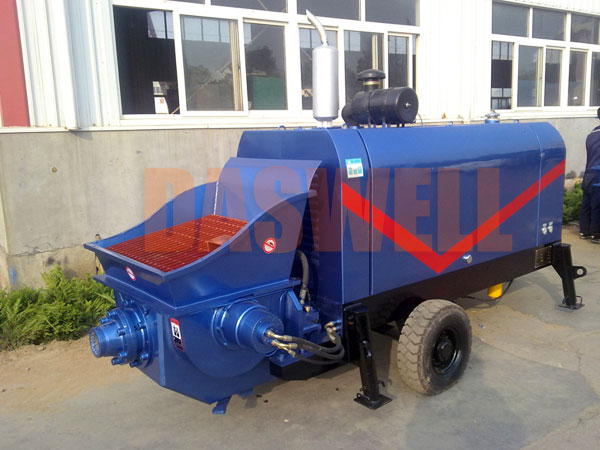

| Item | CPD30 |
| Max. Theoretic Delivery Volume(m3/h) | 30 |
| Power Type | Diesel engine |
| Power(kw) | 62 |
| Engine Brand | CUMMINS |
| Hydraulic System Type | Open |
| Distribution Valve | S valve |
| Hopper Capacity(L) | 600 |
| Feeding Height() | 1400 |
| Mail Oil Pump(ml/r) | 112 |
| Item | CPE30 |
| Max. Theoretic Delivery Volume(m3/h) | 30 |
| Power Type | Electric motor |
| Power(kw) | 37 |
| Hydraulic System Type | Open |
| Distribution Valve | S valve |
| Hopper Capacity(L) | 600 |
| Feeding Height() | 1400 |
| Mail Oil Pump(ml/r) | 112 |
| Item | CPD40-10-66 |
| Max. theoretical concrete output capacity (m3/h) | 35 |
| Total power (kw) | 66 Weichai engine |
| Max. aggregate size (mm) | 40 |
| Outlet pressure (MPa) | 10 |
| Concrete delivery cylinder diameter*stroke (mm) | Φ230*800 |
| Hopper capacity (m3) | 0.5 |
| Delivery pipe diameter (mm) | Φ125 |
| Concrete slump | 160~220 |
| Overall dimension (mm) | 4500×1850×1750 |
| Total weight (kg) | 3400 |

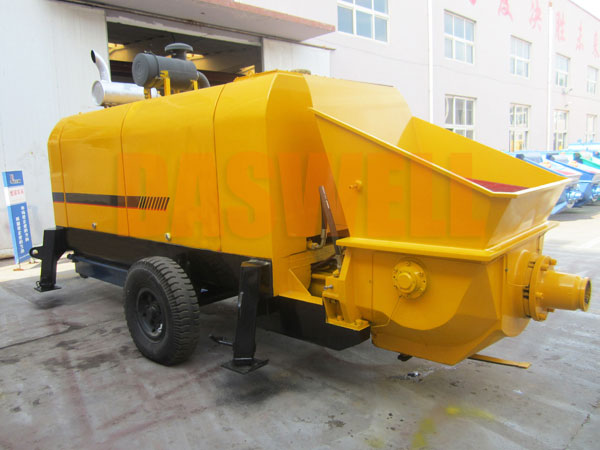

| Item | CPE40-10-55 |
| Max. theoretical concrete output capacity (m3/h) | 55 |
| Total power (kw) | 55 |
| Max. aggregate size (mm) | 40 |
| Outlet pressure (MPa) | 10 |
| Concrete delivery cylinder diameter*stroke (mm) | Φ200*800 |
| Hopper capacity (m3) | 0.5 |
| Delivery pipe diameter (mm) | Φ125 |
| Concrete slump | 160~220 |
| Overall dimension (mm) | 4500×1850×1650 |
| Total weight (kg) | 3300 |
Advantages of mini pumpcrete for sale philippines
One of the greatest advantages of a mini concrete pump for sale is that it offers your business a lot of added flexibility. This type of machine enables you to eliminate some limitations that come with the large standard version. For example, transporting and setting up a large concrete pump in remote areas with poor roads or in construction sites with limited space can be very difficult and expensive. You might also find yourself foregoing on such projects, thus losing business. However, the small size and compact design of the mini concrete pump sale ensures that pumps use up less fuel and make it easier to take the pumps to almost any construction site.
What’s more, most mini concrete pump machine models utilize the hydraulic system. These concrete pumps offer stable performance and have a low failure rate. Basically, the small-size pumps function just like their larger counterparts but on a smaller scale. Therefore, if you are handling a small-size project, the mini pump concrete pumping will be able to fully meet your requirements.
Make less investment and get more benefits
Another major feature of the mini pumpcrete for sale philippines is that they are a lot cheaper than their large counterparts. This helps to reduce the risks involved considering that acquiring construction machinery is often a hefty financial investment. Moreover, the benefits of a mini concrete pump for sale far outweigh the costs. Also, if you are a new construction company, you might be running on a tight budget and looking for a more affordable alternative as you build up your portfolio. Investing in a fully-fledged concrete pump machine can be risky. And this can quickly drain your finances even before establishing yourself. This is where mini concrete pump for sale comes in.
TMBP33 concrete placing boom
deliver it to Philippines
To sum up, if you plan to invest in a mini concrete pump in Philippines, please don’t hesitate to choose our company. Leave your message to us and we will reply you as soon as possible.
