Small concrete pump for sale is a hot sale product for these construction projects. As the name suggest, the small concrete pumps for sale can help to pump concrete into the construction site quickly. Actually, the small concrete pumps sale can be divided into two types, small concrete mixer and pump and small line concrete pumping. Small concrete mixer and pump can combine sand or gravel, cement, and water evenly to form concrete. Concrete mixers have a rotating drum, which is used to mix the components. In addition, small towable concrete pump is mainly used to transport the concrete.

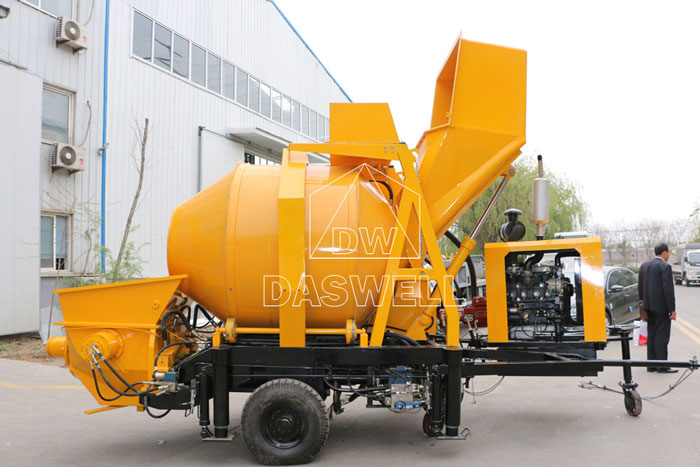

small concrete mixer pump
small concrete line pump
Why should you invest in a small concrete pump
Construction companies are always on the lookout for techniques that improve their productivity at work. The small cement pump can help them achieve that goal. In fact, concrete pump small size has many more benefits than people know about. On the one hand, small concrete pump machine needs low operation cost. Hiring labors to mix the ingredients of concrete and also deliver everything on the construction site means spending a huge amount on their salaries. Instead, investing in a smart concrete pumping is more cost-effective. Manual job has always been expensive. Companies can use their manual resource in the construction department to finish the project quickly.
EMP40 electric type
| Parameter | Unit | EMP40 | |
| Power | kw | 45 | |
| Whole machine | Length | mm | 4250 |
| Width | mm | 2100 | |
| Height | mm | 2700 | |
| Weight | kg | 4000 | |
| Mixer | Mixer model | / | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | |
| Maximum aggregate size | mm | 40 | |
| Working cycle time | s | 72 | |
| Feeding height | mm | 1400 | |
| Hopper capacity | m3 | 0.65 | |
DMP40 diesel engine
| Parameter | Unit | DMP40 | |
| Power | kw | Weichai diesel engine; 66kw | |
| Whole machine | Length | mm | 4500 |
| Width | mm | 1850 | |
| Height | mm | 1950 | |
| Weight | kg | 4000 | |
| Mixer | Mixer model | / | JZM450 |
| Theoretical mixing capacity | m3/h | 15-25 | |
| Maximum aggregate size | mm | 40 | |
| Working cycle time | s | 72 | |
| Feeding height | mm | 1400 | |
| Hopper capacity | m3 | 0.65 | |
On the other hand, the small batch concrete pump can handle massive quantities of concrete in one session. Construction sites require tons of concrete. The small concrete pump sale makes it easier to make and deliver the required quantity fast. Of course, different small concrete pump models will have different output capacities. Customers can buy our small concrete pump for sale according to their demands at the construction site.
EMP40 small pump
work in Philippines
Wide use of small cement pump
Our small concrete pumping machine has wide use on various of projects, such as building construction, road construction, tunnel project, bridge construction and so on. Here are two examples for your reference. Small concrete mixer with pump are used in building site. They are used to mix concrete and transport them. They are perfect for mixing smaller volumes of concrete. Additionally, small concrete mixer pumps have wheels. Therefore, they are perfecting for transporting the concrete in building sites. Moreover, our small concrete pumping machine has two different driven engine, diesel engine and electric motor. If your site has plenty electricity, the electric small cement pump for sale is a good choice for you. On the contrary, the diesel engine small concrete pump sale is right choice for you.
building construction
road construction
In addition, cement and concrete are used in road construction. So small concrete pump for sale in philippines can make concrete for making girders, bearing pads, flyovers, underpasses, etc. Cement is used in road construction because it can reduce the maintenance costs. If you want to learn more information about the wide use of small concrete pump machine, welcome to consult us. We will give you more detailed and information.
CPD30 diesel engine
| Item | CPD30 |
| Max. Theoretic Delivery Volume(m3/h) | 30 |
| Power Type | Diesel engine |
| Power(kw) | 62 |
| Engine Brand | CUMMINS |
| Hydraulic System Type | Open |
| Distribution Valve | S valve |
| Hopper Capacity(L) | 600 |
| Feeding Height() | 1400 |
| Mail Oil Pump(ml/r) | 112 |
CPD40
| Item | CPD40-10-66 |
| Max. theoretical concrete output capacity (m3/h) | 35 |
| Total power (kw) | 66 Weichai engine |
| Max. aggregate size (mm) | 40 |
| Outlet pressure (MPa) | 10 |
| Concrete delivery cylinder diameter*stroke (mm) | Φ230*800 |
| Hopper capacity (m3) | 0.5 |
| Delivery pipe diameter (mm) | Φ125 |
| Concrete slump | 160~220 |
| Overall dimension (mm) | 4500×1850×1750 |
| Total weight (kg) | 3400 |
CPD60
| Item | CPD60-13-130 |
| Max. theoretical concrete output capacity (m3/h) | 81/59 |
| Total power (kw) | 130 Weichai engine |
| Max. aggregate size (mm) | 40 |
| Outlet pressure (MPa) | 9/13 |
| Concrete delivery cylinder diameter*stroke (mm) | Φ200*1800 |
| Hopper capacity (m3) | 0.8 |
| Delivery pipe diameter (mm) | Φ125 |
| Concrete slump | 160~220 |
| Overall dimension (mm) | 6300×2100×2350 |
| Total weight (kg) | 6300 |
Small portable concrete pump
We also call the small concrete pumps sale as small portable concrete pump. Why? That is mainly because that the small concrete pump equipment is convenient to move and transport. Our small portable concrete pumping machine has its own wheels. When you need to transport it from one site to another, you just need a trailer. You just need to install the small mobile concrete pump to the trailer, and you can move it easily.
CPE30 electric type
its internal structure
| Item | CPE30 |
| Max. Theoretic Delivery Volume(m3/h) | 30 |
| Power Type | Electric motor |
| Power(kw) | 37 |
| Hydraulic System Type | Open |
| Distribution Valve | S valve |
| Hopper Capacity(L) | 600 |
| Feeding Height() | 1400 |
| Mail Oil Pump(ml/r) | 112 |
You will get the benefits from the small portable concrete pump for sale because of its quick movement. To begin with, the good mobility of small portable concrete pump sale can reduce the movement time and shorten working period. Then, besides quick movement, the small portable concrete pumping machine also has small size and light weight. This will make the transportation become easier. Moreover, small portable concrete pump also can quickly convey the concrete to the sites. Therefore, the small mobile concrete pump is good machine for you.
the pipeline
control cpanel
driven motor
its hopper
CPE40
| Item | CPE40-10-55 |
| Max. theoretical concrete output capacity (m3/h) | 55 |
| Total power (kw) | 55 |
| Max. aggregate size (mm) | 40 |
| Outlet pressure (MPa) | 10 |
| Concrete delivery cylinder diameter*stroke (mm) | Φ200*800 |
| Hopper capacity (m3) | 0.5 |
| Delivery pipe diameter (mm) | Φ125 |
| Concrete slump | 160~220 |
| Overall dimension (mm) | 4500×1850×1650 |
| Total weight (kg) | 3300 |
How to build a small concrete pump
If you want to build a small concrete pump for sale, you should consider what type and model of machine you really need. Then you need to purchase a small size concrete pump machine at an affordable price from a reputable supplier. Of course, when you invest in a small scale concrete pump, you also should think about your investment cost.
our pump production factory
Next, you should plan your construction site. When you are a little confused, welcome to ask us for help. As the professional small concrete pump suppliers, our Daswell Machinery will be responsible for the whole trading process. Finally, when you need to install and use the small concrete pumps sale, our engineers also can arrive your site and guide you. To sum up, if you want to get a perfect small concrete pump for sale in Philippines, our Daswell Machinery is the best choice for you. Waiting for your message!
